Metal Furniture Welding Robot Solutions
Metal Furniture Welding Robot Solutions. These workpiece examples are starting points for feasibility discussions, not a record of customer installations or a guarantee of suitability.
Request a Quote

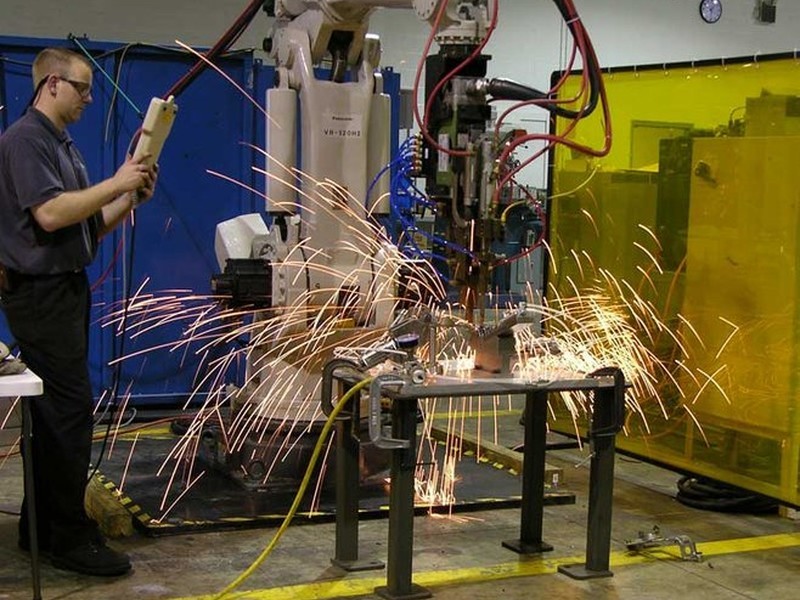

Industry illustration only; not evidence of a CBOXTEC customer installation or supplied configuration.
These workpiece examples are starting points for feasibility discussions, not a record of customer installations or a guarantee of suitability.
Application screening
- Chair and table frames
- Shelving units and racks
- Decorative metalwork
- Furniture hardware and fittings
- Bed frames and garden furniture
Compare CBOXTEC robot arms and cart configurations against your workpiece, production and purchasing requirements. Confirm the proposed configuration and delivery scope in a written quotation.
What to confirm before selecting a system
- Material grade, thickness, joint geometry, weld access and part variation.
- Torch and tooling loads, working envelope, fixtures and loading arrangements; arm reach alone does not establish workpiece coverage.
- Process, power source, interfaces, consumables and any tracking options for the exact configuration.
- Representative part trials, acceptance criteria and complete cycle time including handling, inspection and changeover.
- System risk assessment, process guarding, extraction and operator training. A collaborative arm does not make the welding installation inherently safe.
- Delivery destination, transport, taxes, installation, training, spare parts and support responsibilities in the written quotation.
Robot arms and configuration options
- CTC007-HJ1077 — 7 kg / 1077 mm
- CTC006-HJ1460 — 6 kg / 1460.7 mm
- CTC015-HJ1464 — 15 kg / 1464.3 mm
- CTC015-HJ1464L — 15 kg / 1464.3 mm
- CTC020-HJ2027 — 20 kg / 2027 mm
- CTC020-HJ2027L — 20 kg / 2027 mm
- CTR008-HJ1450 — 8 kg / 1465 mm
These are the model values currently listed in the product catalog, not independently verified test results. Confirm the current datasheet and configuration before ordering. Payload refers to the load carried by the arm, not the weight of a stationary workpiece. Repeatability does not establish weld quality or complete-system accuracy.
Prepare a project-specific comparison
The following questions are CBOXTEC procurement guidance. Confirm the proposed scope and acceptance criteria with your supplier.
- For chair frames, table bases or shelving, prepare drawings showing material grade, tube or sheet thickness, joint locations and acceptable finished dimensions. Include photographs of current fixtures.
- Supply parts with normal fit-up variation and define visible-weld appearance, inspection and finishing requirements. Ask the trial provider to record dimensional results after welding as well as weld appearance.
- Include at least two representative furniture variants if changeover matters. Agree how fixture changes, program selection, loading and torch access will be demonstrated before comparing a cart with a fixed installation.
Frequently Asked Questions
Request an itemized quotation. Confirm the robot, welding equipment, fixtures, accessories and services separately. Do not assume the website price includes a complete installed system.
Ask which support options can be offered for your project and who would provide them. Confirm availability, scope, language, charges and any agreed response times in writing before ordering.
A general website estimate cannot establish your project's result. Evaluate representative parts and document the complete cycle, utilization, quality requirements and full costs before estimating savings or payback. Record any agreed performance criteria in the project documents.
Review the actual workpieces, fixtures, process and site conditions with the responsible project team. Agree test and acceptance criteria, training needs and a system-level safety assessment. A collaborative arm alone does not establish that the complete welding system can operate without safeguards.
